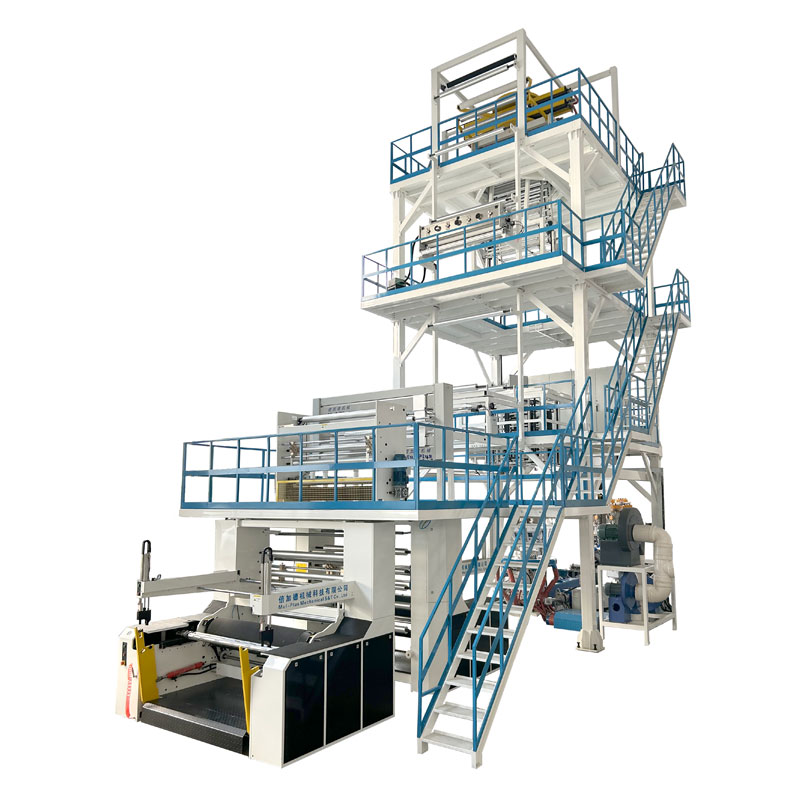

Three Layer High Speed Blown Film Machine
Mul-Plus is a high-end Three Layer High Speed Blown Film Machine manufacturer and supplier from China. Our equipment has received high appreciation from many clients owing to its low cost and great quality. Our Three Layer High Speed Blown Film Machines have a considerable presence in the Asian market. We strive to be your Chinese partner.
Send Inquiry
Product Description
Mul-Plus's Three Layer High Speed Blown Film Machine comes with state-of-the-art automation functionalities, enabling complete control over the entire equipment via the HMI interface. The machinery comprises:
-Fully automatic center-gap-surface winder Internal with dual-side technology
-Non-contact type IBC system
-Automatic thickness control
-Automatic Gravimetric Dosing System
Certainly, you have the flexibility for customization, and we provide reliable recommendations tailored to your needs.
Parameter (Specification)
Attention: What is shown here is a standard model of the machine.
| Roller Width (mm) | 1600 | 1800 | 2000 | 2200 | 2400 | 2600 | 2800 | 3000 |
| Screw Diameter (mm) |
65*2 75*1 |
65*2 75*1 |
65*2 80*1 |
75*2 85*1 |
75*2 85*1 |
75*2 85*1 |
75*2 90*1 |
80*2 90*1 |
| Main Motor (HP) |
60*2 75*1 |
60*2 75*1 |
60*2 100*1 |
100*2 120*1 |
100*2 120*1 |
100*2 120*1 |
100*2 150*1 |
100*2 150*1 |
| Film Width (mm) | 750-1500 | 850-1700 | 950-1900 | 1050-2100 | 1150-2300 | 1300-2500 | 1400-2700 | 1550-2900 |
| Film Thickness (mm) | 0.02-0.18, depending on the material & film size | |||||||
| Die Diameter (mm) | 300 | 350 | 400 | 450 | 500 | 550 | 600 | 650 |
| Film Output (Kg/hr.) | 300 | 330 | 380 | 420 | 480 | 550 | 600 | 650 |
Please note that the models shown here are not exhaustive. The Output depends on the material and many factors. If you require other models, please feel free to contact us.
Feature And Application
The Mul-Plus high-speed co-extrusion blown film machine manufactures top-quality films for our extensive clientele. Our machinery showcases extensive adaptability to raw materials, boasts high production capacity, minimal energy consumption, and boosts your competitive edge.
-It supports a wide range of raw materials such as HDPE, LDPE, LLDPE, MPE, POE, EVA, TPU.
(Please contact us for further details.)
-Application for protective films, shrink films, composite films, cold stretch sleeve films and more.
-For Food packaging，Medical packaging，Industrial packaging，Agriculture，Consumer -goods packaging，Construction，Textile manufacturing.
-Max. film width of up to 3.6 m (7.2 m for single-layer-opened films)
Details
